HF-400series
8 ohms stereo output 350W x 2
4 ohm stereo output 600W ＊ 2
-
LT-15
LT-15 specification parameters (15 )
System type: Multipurpose dual frequency dual unit speaker system
Bass unit: 1 × 15 inch aerospace magnetic bass unit 190 magnetic 75mm voice coil
High pitched unit: 1 × 1-inch aerospace magnetic tweeter unit 110 magnetic 44mm voice coil
Rated impedance: 8ohms
Frequency range: 55Hz~18KHz/-10dB
Frequency response: 60Hz~18KHz/± 3dB
Sensitivity: 95dB/W/m
Maximum sound pressure level: 121dB (peak 127dB)
Frequency division point: 1.86KHz
Diffusion angle: 90 ° x 90 °
Rated power: 500W
Maximum power: 1000W
Peak power: 2000W
External dimensions (W x H x D) 410 x 690 x 450 mm
Weight: 26Kg;
-
LT - 12
LT-12 specification parameters (12 )
System type: Multipurpose dual frequency dual unit speaker system
Bass unit: 1 × 12 inch aerospace magnetic bass unit 180 magnetic 75mm voice coil
High pitched unit: 1 × 1-inch aerospace magnetic tweeter unit 110 magnetic 44mm voice coil
Rated impedance: 8ohms
Frequency range: 58Hz~18KHz/-10dB
Frequency response: 63Hz~18KHz/± 3dB
Sensitivity: 94dB/W/m
Maximum sound pressure level: 119dB (peak 125dB)
Frequency division point: 1.86KHz
Diffusion angle: 90 ° x 90 °
Rated power: 450W
Maximum power: 900W
Peak power: 1800W
External dimensions (W x H x D): 360 x 600 x 390 mm
Weight: 20Kg;
-
LT - 10
LT-10 specification parameters (10 )
System type: Multipurpose dual frequency dual unit speaker system
Bass unit: 1 × 10 inch aerospace magnetic bass unit 140 magnetic 65mm voice coil
High pitched unit: 1 × 1-inch aerospace magnetic tweeter unit 110 magnetic 44mm voice coil
Rated impedance: 8ohms
Frequency range: 61Hz~18KHz/-10dB
Frequency response: 67Hz~18KHz/± 3dB
Sensitivity: 93dB/W/m
Maximum sound pressure level: 117dB (peak 123dB)
Frequency division point: 1.86KHz
Diffusion angle: 90 ° x 90 °
Rated power: 300W
Maximum power: 600W
Peak power: 1200W
External dimensions (W x H x D): 300 x 540 x 340 mm
Weight: 13.5Kg;
-
RB-310
RB-310 specification parameters (10 )
System type: Multipurpose dual frequency dual unit speaker system
Bass unit: 1 × 10 inch aerospace magnetic bass unit 170 magnetic 65mm voice coil
High pitched unit: 1 × 1-inch aerospace magnetic tweeter unit 110 magnetic 44mm voice coil
Rated impedance: 8ohms
Frequency range: 58Hz~18KHz/-10dB
Frequency response: 65Hz~18KHz/± 3dB
Sensitivity: 95dB/W/m
Maximum sound pressure level: 120dB (peak 126dB)
Frequency division point: 1.86KHz
Diffusion angle: 90 ° x 90 °
Rated power: 350W
Maximum power: 700W
Peak power: 1400W
External dimensions (W x H x D): 323 x 539 x 341 mm
Weight: 13.5Kg;
-
RB-312
RB-312 Specification Parameters (12 )
System type: Multipurpose dual frequency dual unit speaker system
Bass unit: 1 × 12 inch aerospace magnetic bass unit 190 magnetic 75mm voice coil
High pitched unit: 1 × 1-inch aerospace magnetic tweeter unit 110 magnetic 44mm voice coil
Rated impedance: 8ohms
Frequency range: 55Hz~18KHz/-10dB
Frequency response: 61Hz~18KHz/± 3dB
Sensitivity: 96dB/W/m
Maximum sound pressure level: 122dB (peak 128dB)
Frequency division point: 1.86KHz
Diffusion angle: 90 ° x 90 °
Rated power: 450W
Maximum power: 900W
Peak power: 1800W
External dimensions (W x H x D): 600 x 370 x 405 mm
Weight: 20Kg;
-

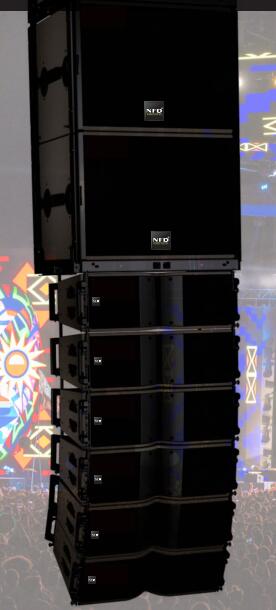

KARA 2-way line array speakers
Loudspeaker units: 2 x8 inchesLF /1×3 inches HF, LF/450-900W, HF/80-160W, neodymium loudspeakers, baltic birch wood
-

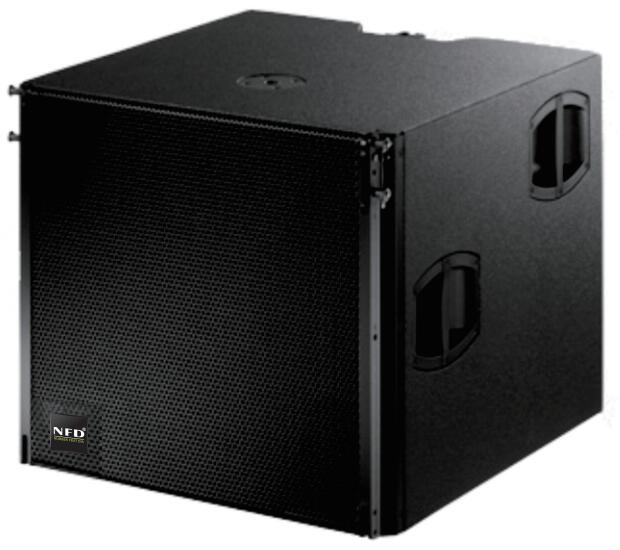

KARA-18B woofer for line array
Loudspeaker unit: 1 x18 inches, 700-1400W, neodymium woofer, baltic birch wood
-

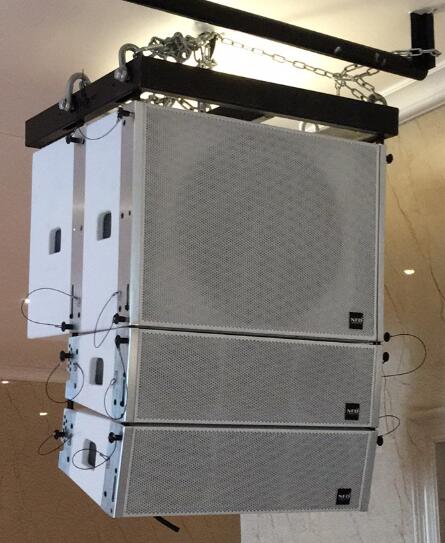

LA-206 Linear Array Speakers
Loudspeaker unit：2 x6.5 inches LF/1×1.76 inches HF, 400-800W(passive), neodymium loudspeakers, baltic birch wood
-
LA-115 woofer for line array s
Loudspeaker units: 1 x 15 inches LF (380mm), 700w/1400w, neodymium loudspeakers, baltic birch wood
-

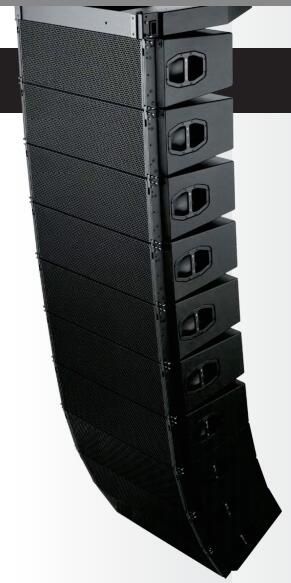

J-8 3-way line array speakers
Loudspeaker units: 2x12inches LF, 1x10 inches MF, 2x1.4 inches HF, 500W/2000W, neodymium loudspeakers, baltic birch wood
-

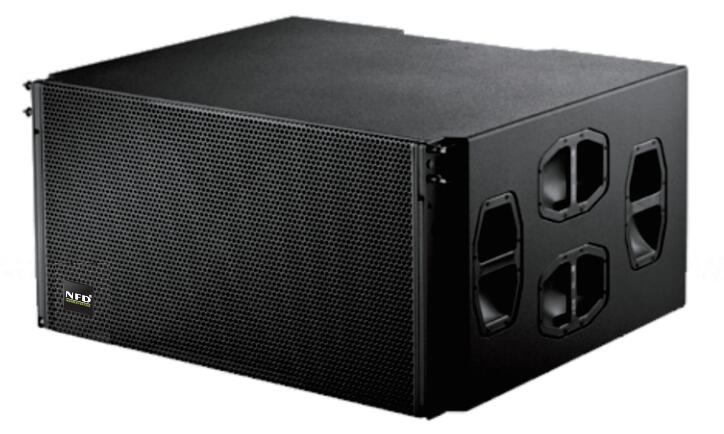

B-2 woofer for line array syst
Loudspeaker units: 2x18inches LF, 1000W/2000W, neodymium loudspeakers, baltic birch wood, full way
