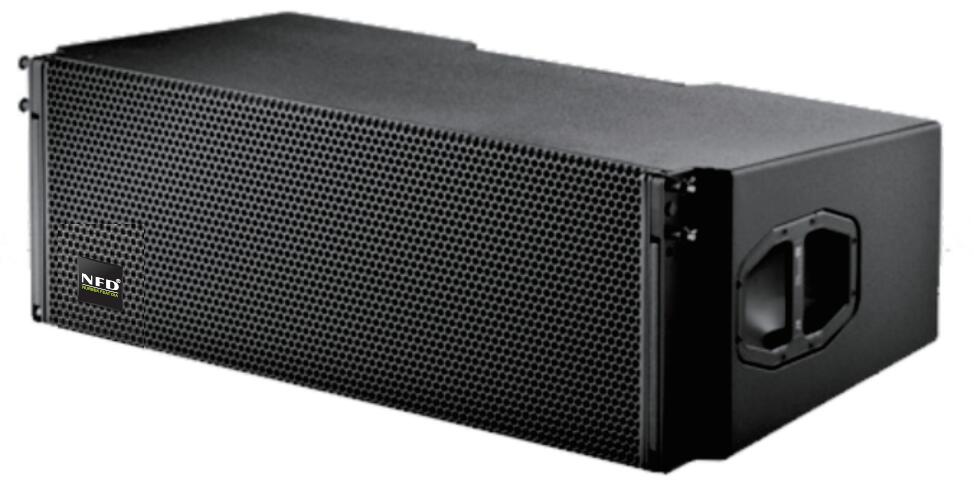

J-8 3-way line array speakers
J-8 adopts 3-way line array design, 2x12inches low frequency driver, 1x10 inches medium frequency driver unit, 2x1.4 inches, high frequency driver unit and 3 inches wave tube, optimized mechanical and audio acoustic design ideas, vertical column hanging system, allows the hanging units quantity to reach 24 boxes, adjustable vertical angle from 0 to 7 °, ensure excellent sound coverage range, used in high fidelity and superior clarity and high flow performance requirements, the British imported bass FANE neodymium magnet tailored.
Adaptive range:
1. theater, theater main expansion equipment, 2. concert halls, clubs, bars, nightclubs, conference rooms, hotels and other audio equipment 3. hall, church sound reinforcement 4. mobiles performance expansion
Technical parameter:




Loudspeaker Units2 x12"LF(8Ω）/1×10"(8Ω）/2×1.4"(12Ω)HF, neodymium loudspeakers
Frequency Range60-20KHz(±3db)
Rated Power(peak)500/2000W
Sensitivity145dB
SPL145dB
Rated Impedance8 Ohm
Mode of Connection2 x Neutrik NL 4, OPTIONAL 2*EP5 or 2*NL8
Hanging AccessoriesProfessional hanging system
Dimension (WxHxD)360mm x 1100 mm x 570 mm
Net weight（KG）60kg


Box Structure:J-8 3-way line array speakers
